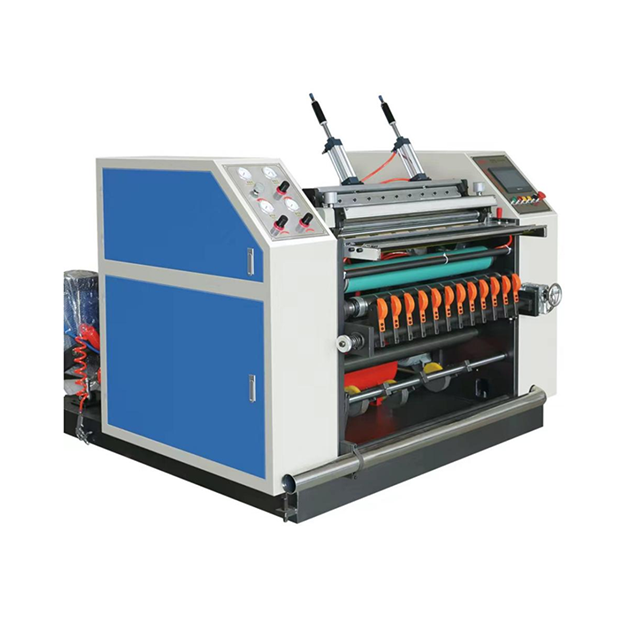

TPQA-900 thermal paper bond paper pos paper slitter & rewinder slitting machine full automatic high speed-TPQT-900 thermal paper bond paper pos paper slitter & rewinder slitting machine full automatic high speed

Specifiction:

1, application: Slitting thermal paper,bond paper, Cash register paper, Fax Paper,POS paper,ATM paper, and other small ribbon roll

2, paper: 50-400gsm

3, feed roll diameter (max.): 1000mm

4, feed roll core: 3#

5, feed roll width (max.): 865mm

6, rewinding paper core: 0.5” , 8mm

7, max diameter of rewinding: 150mm

8, precision: ±0.15mm

9, max. speed: 168m/min

10, automatic tension control: 0-10kg

11, total power: about 3KW

12, voltage: 380VAC, 50HZ, 3P

13, total weight: 1500kgs

14, outline dimension:2260*1960*1630mm

Option：automatic plastic threading equipment, web guide system
