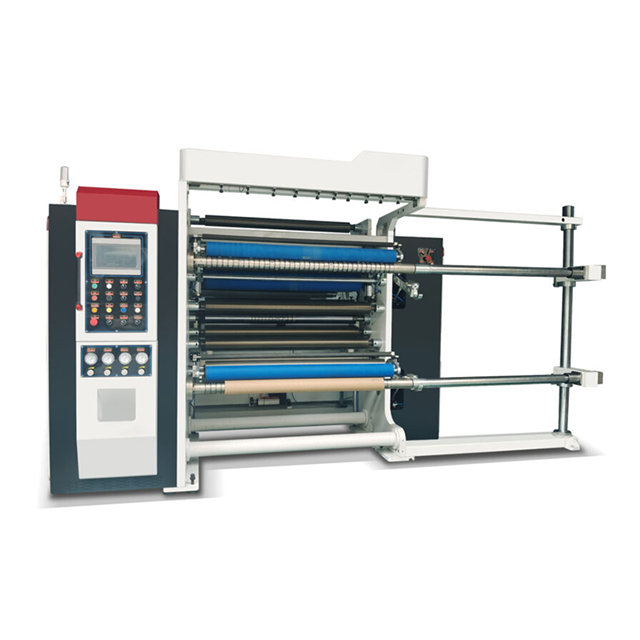

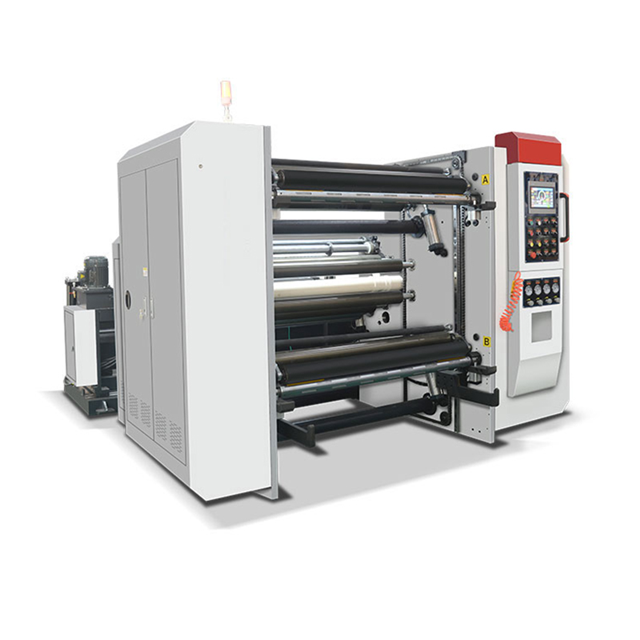

| Model | TPQC-1300S | TPQC-1600S | TPQC-1800S |
| Max. Web Width(mm) | 1300 | 1600 | 1800 |
| Max. Unwind Diameter(mm) | Φ1400 | ||
| Unwind stand | Shaft-less auto loading & floating type with splice table | ||
| Unwind tension control | Magnetic powder brake with PLC control | ||
| Inner core diameter(mm) | 76mm(3”) and 152mm(6”) step chuck | ||
| Web guiding system | Ultrasonic sensor | ||
| Slitting techniques | Rotary shear knife (Razor blade cutting in grooved roller) | ||
| Trim disposal | Trim suction fan 2.2kw | ||
| Max. Rewind Diameter(mm) | Φ600(Φ800 can be customized) | ||
| Rewind tension control | Servo motor*2pcs+differential rewind shafts*2pcs | ||
| Inner core diameter(mm) | 76mm(3”) | ||
| Rewind stripper Width(mm) | 30 | 30 | 40 |
| Speed(m/min) | ≤400 | ||
| Cutting Thickness | For film/self-adhesive: 12-300μm, For paper:30-250g (according to the materials) | ||
| Cutting accuracy(mm) | ±0.15 | ||
| Main Motor Power(kw) | 5.5 | 7.5 | 7.5 |
| Rewind motor(kw) | 5.5*2 | 7.5*2 | 7.5*2 |
| Total power(kw) | 18 | 25 | 26 |
| Power supply | 380V 50HZ 3phases(other voltage can be customized) | ||
| Air supply | 0.6-0.8 Mpa, 0.8m3/Min | ||
| Weight(kg) | 3000 | 3400 | 3600 |
| Overall Dimension(mm) | 3300×4100×2300 | 3300×4300×2300 | 3300×4500×2300 |
Features:
|
1. The web is passed through high rack from above which keeps the web from dirt and pollution.
2. Three individual servo motors synchronous control with differential shafts provide accurate web tension which is calculated by PLC. 3. Siemens PLC control system with touch screen brings much convenience for operator, it has multi-functions, like meter reached auto stop, tension auto control, and so on. 4. Shaftless unwind with hydraulic auto loading for heavy jumbo rolls and with the splice table for fast converting work. Web guiding system to detect the web edge position. 5. Equipped with products discharge shelf to help unload heavy rolls from rewind shafts. 6. Be equipped with rotary shear slitting knives with wool felt and high power trim edge suction fan.
|
Standard configuration:
| >Unwinder: high rack shaftless unwind |
|
1. Floating type shaft-less unwind stand, 3”and 6” step chuck.
2. Hydraulic lifter for heavy jumbo roll, Max diameter 1400mm and Max weight 1800kg. 3. Left and right arm is controlled by hydraulic, and can be moved separately. 4. Web adjustment roller ensures the web tension balance from left to right. 5. Tension is calculated by PLC and controlled by magnetic brake automatically. 6. Web-guiding system: ultrasonic sensor to detect the web position. 7. Splice table for web connection. 8. Constant closed-loop tension control system(optional): the tension is sensed by load cell sensor and compared to the set tension. |
| > Traction and drive: double traction rubber rollers |
|
1. Servo motor is connected to the main drive roller.
2. Synchronous belt transmission. 3. Pneumatic nip rubber roller, the pressure of nip can be adjusted: providing perfect tension isolation. 4. Banana roller for thin wide materials(optional) |
| > Slitting section |
|
1. Rotary shear knives 10 sets with wool felt to clean the knife(remove the sticky glue from knife )
2. Knife up/down adjustment and left/right fine-adjustment are controlled by worm-gear reducers. 3. Trim disposal: 2.2 kw trim suction fan. 4. Pneumatic protective cover for slitting section. 5. Razor blade cutting in grooved roller (optional) |
| > Rewinding section |
|
1. Duplex rewind structure, 2 pcs 3” inner pressure type differential shaft center winding, the Max. rewind diameter 600mm.
2. Servo motor(2 sets) drive system and high precision differential shafts with SMC proportional valve provide the accurate winding tension control. 3. Pneumatic support arms and pneumatic shaft lock for rewind shafts. 4. Pneumatic lay-on roller guarantees full contact between lay-on roller and slit roll and the lay-on pressure can be adjusted. 5. Auxiliary nip roller for rewind web connection. 6. Product discharge shelf helps heavy rolls unloading as well as efficiency during slit roll exchange. 7. Lasor core allignment to indicate the position of new core to get exact finish size on every roll change over. 8. Anti-static bar for each rewind shaft. 9. Motor-driven automatic pusher to unload finished rolls(Optional) 10. Airshaft for rewinding(Optional) |
| > PLC and touch screen |
|
1. Colorful 10” touch-screen and PLC (Siemens).
2. Chinese, English and Russian language(optional) on touch screen 3. Automatic tension& diameter calculate and control: Set taper and initial tension on touch screen for your materials, PLC will detect current tension and current diameter automatically and accurately. 4. Meter reached auto alarm and stop function. 5. Unwind Set diameter reached auto alarm and stop function. 6. One button auto speed up function: Press one button, machine will speed up to your set speed smoothly and automatically. 7. Rewind shaft forward and backward function. 8. Problem diagnosis function on touch screen, if any problems occur, you can check I/O page to find it. 9. both Airshaft mode and differential shaft mode are available on touch screen.
|
